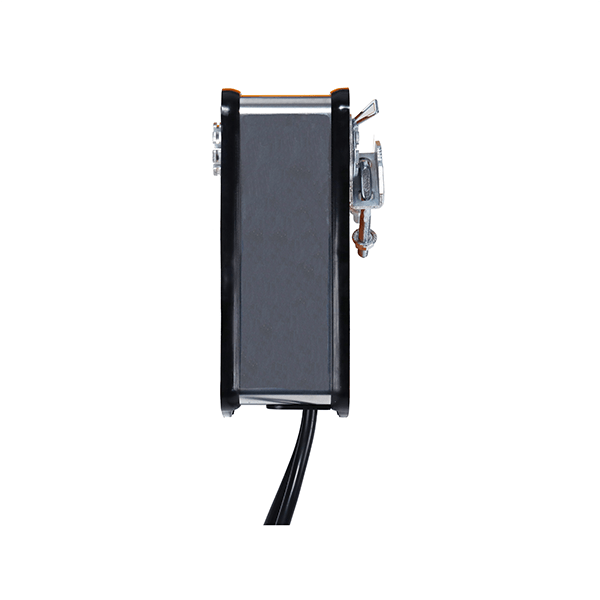

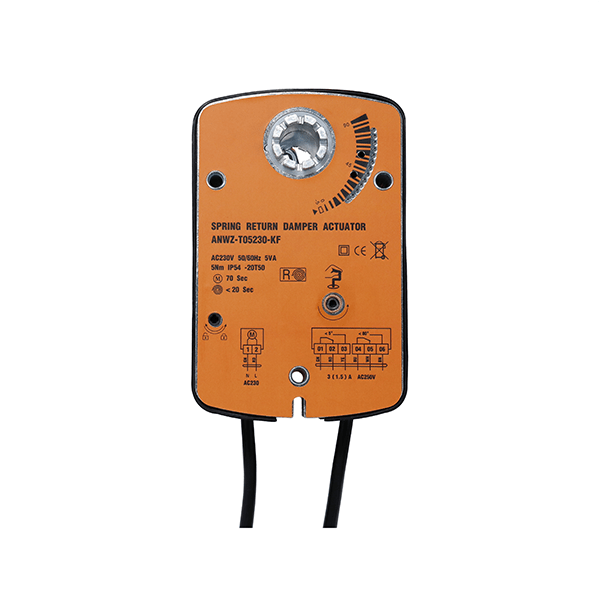

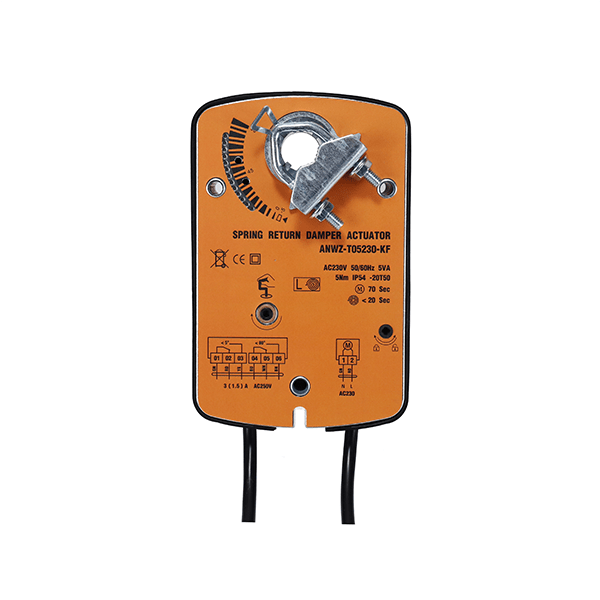

SRA81 Spring Reset Damper Actuator
Models:
SRA81
Torque:
5 Nm
Suitable Damper Size:
Under normal wind resistance, 1 Nm matches 0.1 square meter (including closed valve matching scheme)
IP Grade:
IP54
Utilizes an imported DC motor/brushless motor to deliver torques of 5NM, ensuring robust performance and durability. Designed for building ventilation fields, it facilitates mechanical reset upon power failure and electric start, capable of enduring more than 30,000 cycles of repeated action.
Key Specifications:
- Core Function:
Electric damper actuation with spring reset mechanism for reliable power-off operation - Motor Technology:
Imported DC/brushless motor providing 5NM torque for effective damper control - Control Precision:
High-precision control system for accurate execution and positioning - Operating Range:
Adjustable full stroke up to Max 95°, with mechanical limit setting - Noise Levels:
Motor running at 46dB, spring reset at 62dB, ensuring quiet operation - Compatibility:
- Suitable for dampers under normal wind resistance, with 1NM matching 0.1 m²
- Rotating direction manually adjustable
- IP54-rated for dust/water protection
- Operating temperature: -20°C to +50°C; storage: -30°C to +80°C
Catalogue：
Related Products
Additional information
| Torque | 5 Nm |
|---|---|
| Suitable damper size | Under normal wind resistance, 1 Nm matches 0.1 square meter (including closed valve matching scheme) |
| Rated voltage | AC 24 V, 50/60 Hz; DC 24 V; AC 100–240 V, 50/60 Hz |
| Rated voltage range | AC / DC 19.2…28.8 V / AC 85…265 V |
| Temperature (Working) | -20…+50℃ [-4…+122℉] / IEC 721-3-3 |
| Temperature (Storage) | -30…+80℃ [-22…+176℉] / IEC 721-3v-2 |
| IP grade | IP54 |
