· Oil-filled silicon core with high overload capacity
· Excellent resistance to corrosion and wear
· Using ASlC technology, digital compensation
· Can be used in a variety of complex environments
Share This Item :

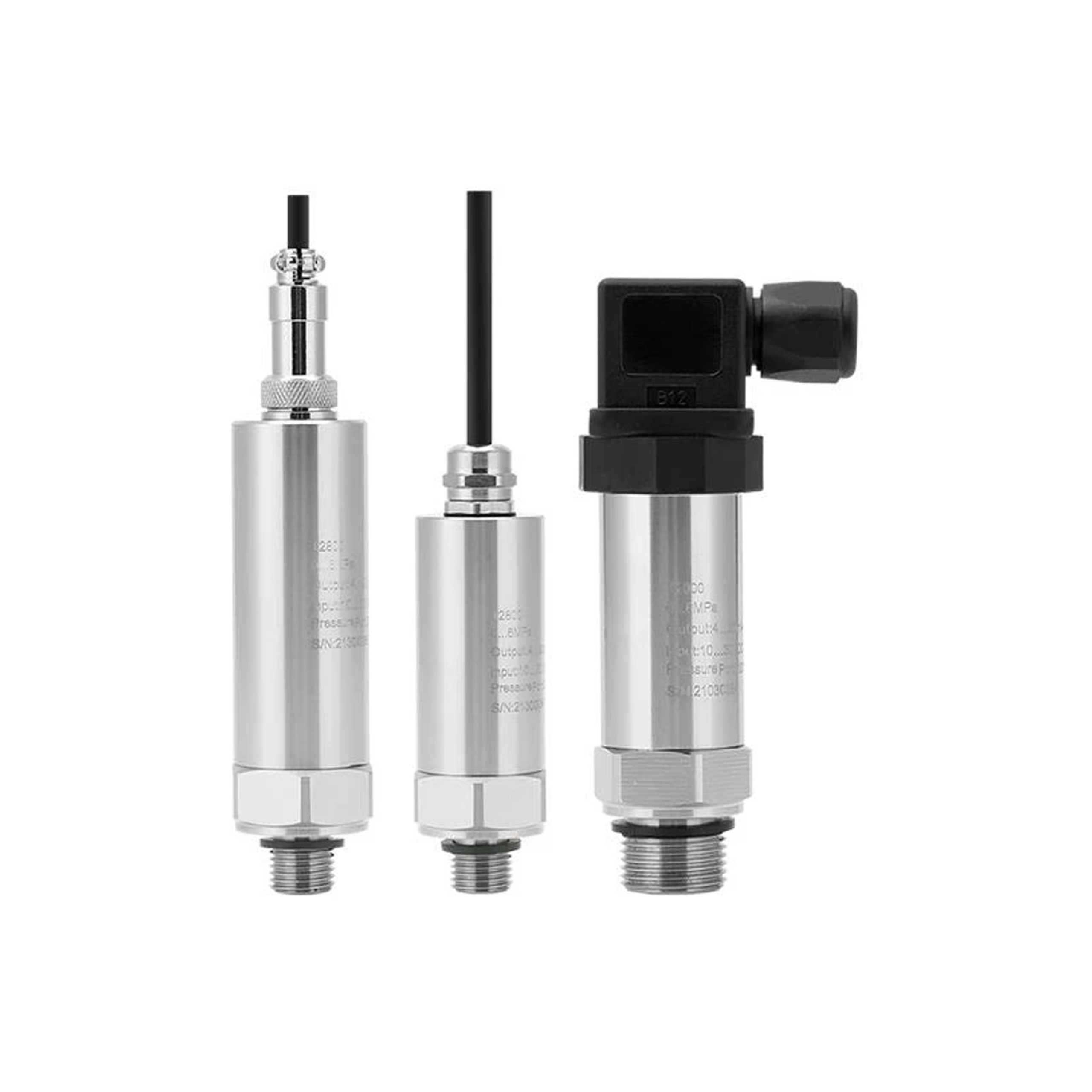

PT13 oil-filled silicon core pressure transmitter is widely used in the measurement of fluid
medium pressure in test systems such as fire protection, water treatment, water supply systems,
air compressors, and pneumatic device and factory automation. It has excellent anti-corrosion
and anti-wear performance, adopts ASlC technology, MEMS technology, digital compensation,
and can be applied in various complex environments.
| Measurement Range | -100 kPa…0~5 kPa…60 MPa |
|---|---|
| Overload Pressure | 1.5 times of the rated pressure |
| Accuracy | ±0.5%F.S (-100KPa…0~5kPa…60MPa), ±0.25%F.S (-100KPa…0~10kPa…60MPa) |
| Stability | ＜0.5%F.S/year |
| Pressure Form | Guage pressure G/Absolute pressure A |
| Measured Medium | Gas or liquid compatible with 304 and 316L stainless steel, Fluorine rubber or Nitrile rubber |
| Process Connection | G1/4, NPT1/4, R1/4, G1/2,7/16-20UNF, M20*1.5, M10*1, M14*1.5etc |
| Temperature | Working: -20…+85°C[-4…185°F] |
| IP Grade | IP54 (GX12 aviation), IP65(DIN43650A, |
| Output Signal | 4…20 mA, 0.5…4.5 V, 0…5 V, 0…10 V, RS485 |
| Power Supply | 8…36 VDC, 4.75…5.25 VDC, 8…36 VDC, 12…36 VDC, 10…30 VDC |
